BONDEK® II

(Building Department Cental Data Bank Refer : BD-SP-003)


[ Download the Material Specification of BONDEK® II ]



Product Features

BONDEK® Structural Decking is roll-formed from hot dipped, zinc-coated, high strength grade steel strips. It is the production of BlueScope Buildings that, after many years of intensive researching, has resulted in the profiled steel sheet acting as a longitudinal reinforcement to the composite beams and slabs. It is widely used for concrete slab construction and suitable for concrete, masonry or steel frame building construction.

All the load tables and data of LYSAGHT® Structural Decking have been prepared using actual test data to ensure maximum performance and quality. We conducted LYSAGHT® Structural Decking system tests in Chinese, North American and Australian testing centers. Some of these tests included:

  • Fire rating test (R10L08A HOKLAS)

  • Slip Block Test

  • Formwork Test

  • Full scale slab Test

  • Advanced composite floor system: Lysaght structural decking performs as a positive reinforcement as well as a permanent one. This provides savings in concrete and reinforced steel.

  • Excellent fire rating performance: Lysaght structural decking system has passed the fire rating test set out by the China Quality Supervision and Test Centre for fixed fire extinguishing systems and fire resisting building components. It also passed the fire rating test without the need for sprayed fire treatments to the underside of the steel deck .

  • Quick and simple installation: Coupled with nil or less propping compared to strippable formwork, Lysaght structural decking is quick and simple to install. The product provides a safe and neat platform for construction. This saves considerable construction time which also results in savings in overall construction costs.

BONDEK® is roll formed from G550 high strength galvanized steel.

  • The patent embossments on the profile create a strong bond between the concrete and the decking sheet.

  • A fire resistant performance of over 2 hours without the need for sprayed fire treatments.

  • Beautiful and flat inherent internal ceiling and increased interior height.

  • Full range of flexible hanging accessories which allow various requirements to be met without drilling into the concrete slab.

Bondek II

Thickness: *0.75m, 1.0mm & *1.2mm

    *(0.75 &1.2mm is non-standard item, min order 2000m2 is required.

      Delivery lead-time is 8~12week)

Hong Kong Central Government Offices
Xiqu Centre Xiqu Centre
Nina Tower
MGM
Mgm_grand_macau
Hysan Place, Causeway Bay
New Grand Lisboa, Macau
ICC West Kowloon
Venetian
Wynn-Macau
The Resort-Cotai Macau Hotel
Venetian
City of Dream
Cheung Kong Center
Cheung Kong Center
Bank of China Building

W-DEK®


Product Features

LYSAGHT® Structural Decking is roll-formed from hot dipped, zinc-coated, high strength grade steel strips. It is the production of BlueScope Buildings that, after many years of intensive research, has resulted in the profiled steel sheet acting as a longitudinal reinforcement to the composite beams and slabs.

It is widely used for concrete slab construction and is suitable for concrete, masonry or steel frame building construction. All the load tables and data of LYSAGHT® Structural Decking have been prepared using actual test data to ensure maximum performance and quality. We conducted LYSAGHT®Structural Decking system tests in Chinese, North American and Australian testing centers. The tests that were conducted include:

  • Advanced composite floor system: Lysaght structural decking performs as positive reinforcement as well as permanent formwork thus, providing savings in concrete and reinforcing steel.

  • Excellent fire rating performance: The Lysaght structural decking system has passed the fire rating test set out by the China Quality Supervision and Test Centre for fixed fire extinguishing systems and fire resisting building components. It has also passed the fire rating test without the need for fire treatments to be sprayed to the underside of the steel deck.

  • Quick and simple installation: Coupled with nil or less propping compared to strippable formwork, Lysaght structural decking is quick and simple to install, providing a safe and neat platform for construction. This saving of considerable construction time also results in savings in overall construction costs.

Features of W-DEK® are:

  • The patent embossments that are rolled into the profile create a high bond between the concrete and the deck as well as with the smaller ribs and flutes. This further enhances our product's composite action and rigidity.

  • LYSAGHT W-DEK® 's design as composite slab provides a more cost effective solution It does this through saving in concrete and reinforced steel which also reduces the self weight of buildings.

  • LYSAGHT W-DEK® has passed the American UL fire rating certification and ICBO requirements. It has a fire rating performance of over 1.5 hours without sprayed fire treatments.

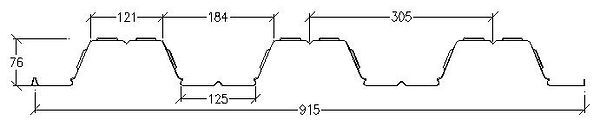

3W-DEK

2W-DEK

Thickness: *0.75m, *0.9mm, *1.2mm & *1.5mm

    *non-standard item, min order 2000m2 is required.

      Delivery lead-time is 8~12week

PowerDek®


Product Features

LYSAGHT® Structural Decking is roll-formed from hot dipped, zinc-coated, high strength grade steel strip. It is the production of BlueScope Buildings that, after many years of intensive researching, has resulted in the behavior of the profiled steel sheet acting as longitudinal reinforcement to the composite beams and slabs. It is widely used for concrete slab construction and is suitable for concrete, masonry or steel frame building construction.

All the load tables and data of LYSAGHT® Structural Decking have been prepared using actual test data to ensure maximum performance and quality. We conducted LYSAGHT® Structural Decking system tests in China, USA and Australian testing centers

  • Advanced composite floor system: Lysaght structural decking performs as a positive reinforcement as well as permanent formwork, thus providing savings in concrete and reinforcing steel.

  • Excellent fire rating performance: Lysaght structural decking system had passed the fire rating test set out by the China Quality Supervision and Test Centre for fixed fire extinguishing systems and fire resisting building components. It also passed the fire rating test without the need for sprayed fire treatments to be applied to the underside of the steel deck. .

  • Quick and simple installation: Coupled with nil or less propping compared to strippable formwork, Lysaght structural decking is quick and simple to install, providing a safe and neat platform for construction This saves considerable construction time which translates to savings in overall construction costs.

Features of PowerDek® are:

  • Maximum unpropped spans of up to 6.0m which are suitable for longer span and big load projects.

  • Rolled formed with high tensile steel which provide high load capacity;

  • A fire resistant performance of over 1.5 hours without the need for sprayed fire treatments;

  • Better appearance with exposed ceilings;

  • Exceptional and secure working platform.

PowerdDek100

PowerdDek120

Thickness: *1.0m, *1.2mm & *1.5mm

    *non-standard item, min order 2000m2 is required.

      Delivery lead-time is 8~12week
